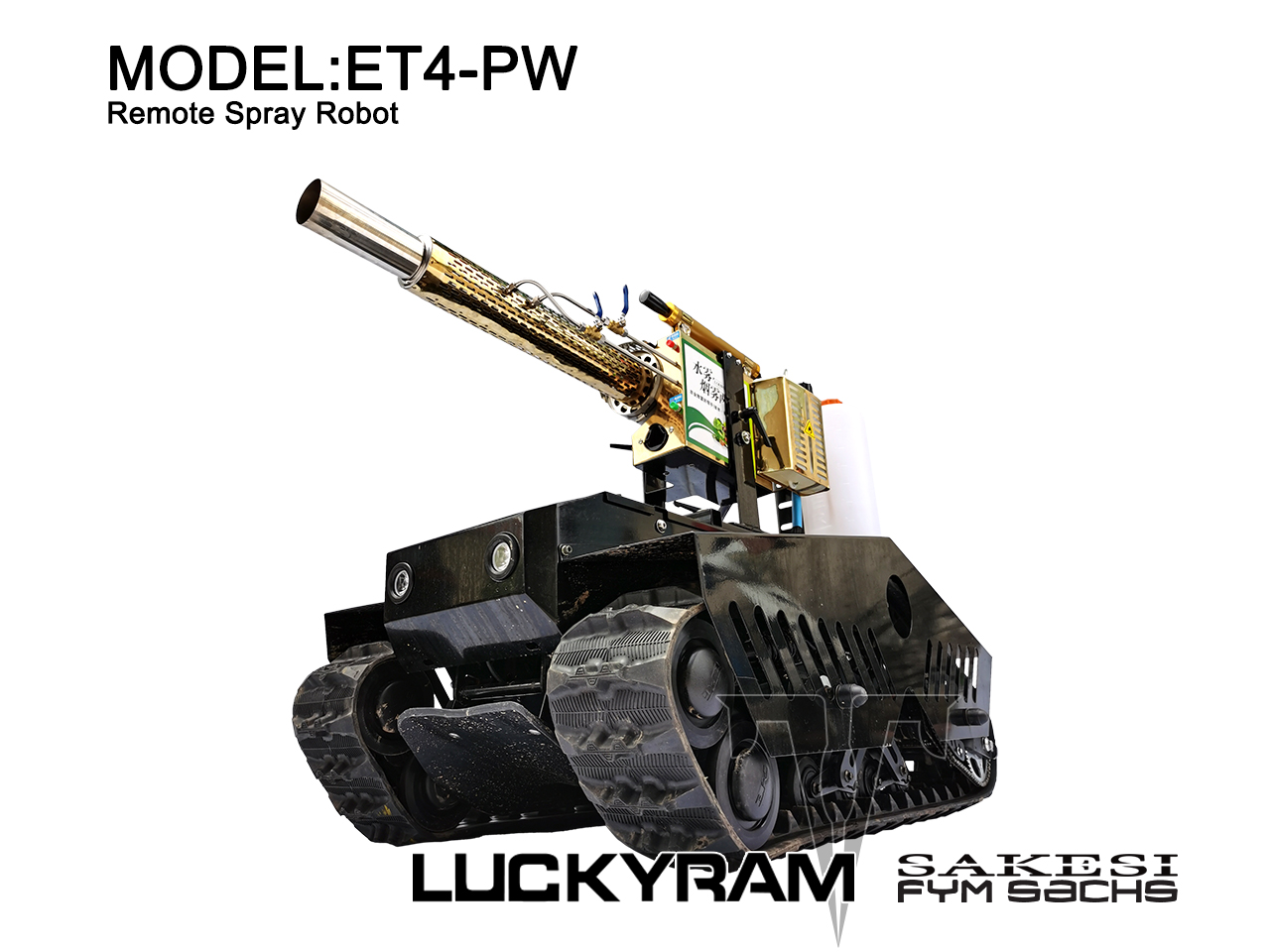

| Crawler-type remote-controlled Sprayer |
| MODEL | ET4000-PW |
| DIMENSION(L*W*H) | 1400*785*970mm |
| NET WEIGHT | 176KG |
| DRAG WEIGHT | 300KG |
| MOTOR | PERMANENT MAGNET SYNCHRONOUS MOTOR |
| RATED POWER | 2000W*2 |
| MAX POWER | 4200W*2 |
| MAX TORQUE | 49N.M*2 |
| BATTERY | TERNARY POLYMER LITHIUM BATTERY |
| SPECIFICATION OF BATTERY | 72V45AH |
| CHARGER | 84V15A |
| CHARGING TIME | ≤3HOURS |
| CHARGING AMBIENT TEMPERATURE | 0℃ TO 50℃ |
| TRACK | DOUBLE RUBBER TRACK |
| SUSPENSION SYSTEM | ALUMINUM CASTING CHRISTIE SUSPENSION |
| SHOCK ABSORBER | HYDRAULIC DAMPING *6 |
| MAX SPEED (FORWARD) | 22KM/H(6.1M/S) |
| MAX SPEED (BACK OFF) | 22KM/H(6.1M/S) |
| TURNING RADIUS | 0M |
| CLIMBING ABILITY (FORWARD ) | SLOPE ≥ 100% (ANGLE ≥ 45 °) |
| CLIMBING CAPACITY (LATERAL) | SLOPE ≥ 60% (ANGLE ≥ 31 °) |
| RANGE | ≥ 30KM (NORMAL TEMPERATURE @ AVERAGE 15KM / H) |
| DISCHARGE AMBIENT TEMPERATURE | -15 ℃ TO 60 ℃ |
| REMOTE CONTROL DISTANCE | WITH OBSTACLES: 300M WITHOUT OBSTACLE: 600M |
| FR/RR LIGHTS | 10W*4 |
| APPLICABLE ENVIRONMENT | SNOW / SAND / MUD / MOUNTAIN / DEPRESSION / ROAD |
| SPECIFICATION OF SPRAYER |
| SPRAY TYPE | SPRAY / SMOG |
| SPRAY QUANTITY | 80-120L/H |
| SIZE OF MEDICINE CHEST | 15L |
| SIZE OF TANK | 2L |
| GASOLINE TYPE | ≥93# UNLEADED GASOLINE DO NOT ADD LUBRICATING OIL |
| FUEL CONSUMPTION | 3L/H |
| START MODE | ELECTRIC START |
| START BATTERY | 12V RECHARGEABLE BATTERY |
| SPRAY DISTANCE ( + DIFFUSE ) | ≥10M |
| DIESEL SMOKE INJECTION DISTANCE ( + DIFFUSE ) | ≥40M |
ANGLE ADJUSTMENT ( UP / DOWN ) | UP 25°~ DOWN -25° |
ANGLE ADJUSTMENT ( LEFT / RIGHT ) | LEFT 40° ~ RIGHT 40° |
l Fast speed, strong climbing ability, long remote control distance, flexible and can turn around in place.
l The dual - carburetor single mixing technology is used for sprayer. It can start with one key and operate simply.
l The dosage of the drug is small, saving water, time and labor, and the efficacy is long-lasting.
l It can be used for sanitation, epidemic prevention, disinfection and sterilization in hospitals, isolation areas, airports, stations, docks, residential areas, urban sewers, garbage dumps, toilets, warehouses and other places.
l It can be used for pesticide, fertilization, disinfection and sterilization of greenhouse, agriculture, forestry, orchard, grassland, city, environmental protection and open-air crops, such as insecticide and sterilization of greenhouse fruit trees, corn, cotton, rice, wheat, tea, citrus and other crops.
l Spray can enhance the temperature, effectively prevent frosts, range far, cover a wide area, penetrate the force and adhesion strongly, the particles of drugs are fine, float in the air for a long time, make the drugs play a dual role in killing and touching the crops, and the efficacy can be fully realized, so as to achieve the best effect of killing bacteria in all directions.
l It can be used to kill insects of trees in the forest, with quick effect and good effect.
l Remote control operation can effectively protect the safety of the operator.
l Warning: Sprayer is a deflagration structure. There may be sparks during operation, and can not be used in inflammable and explosive places.
