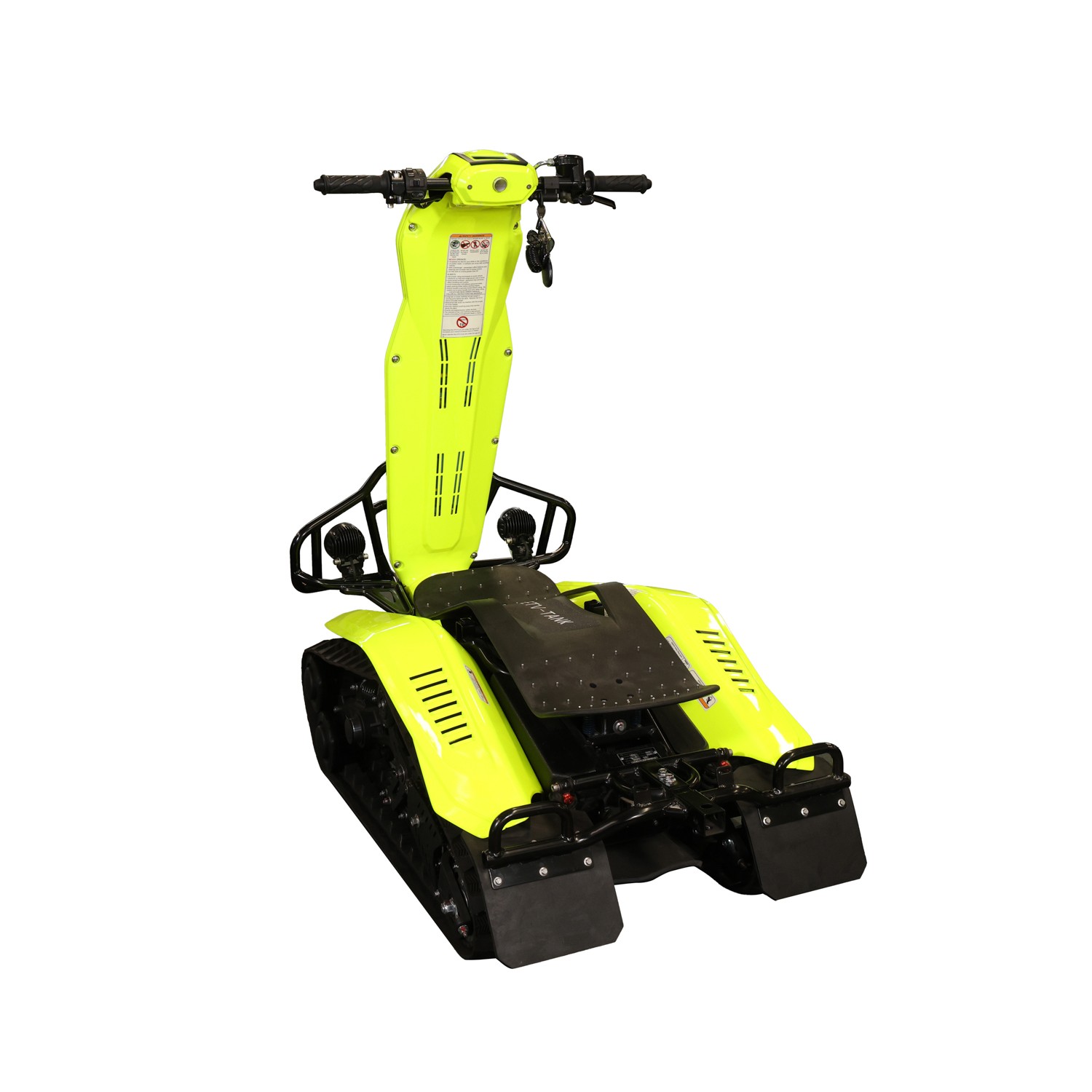

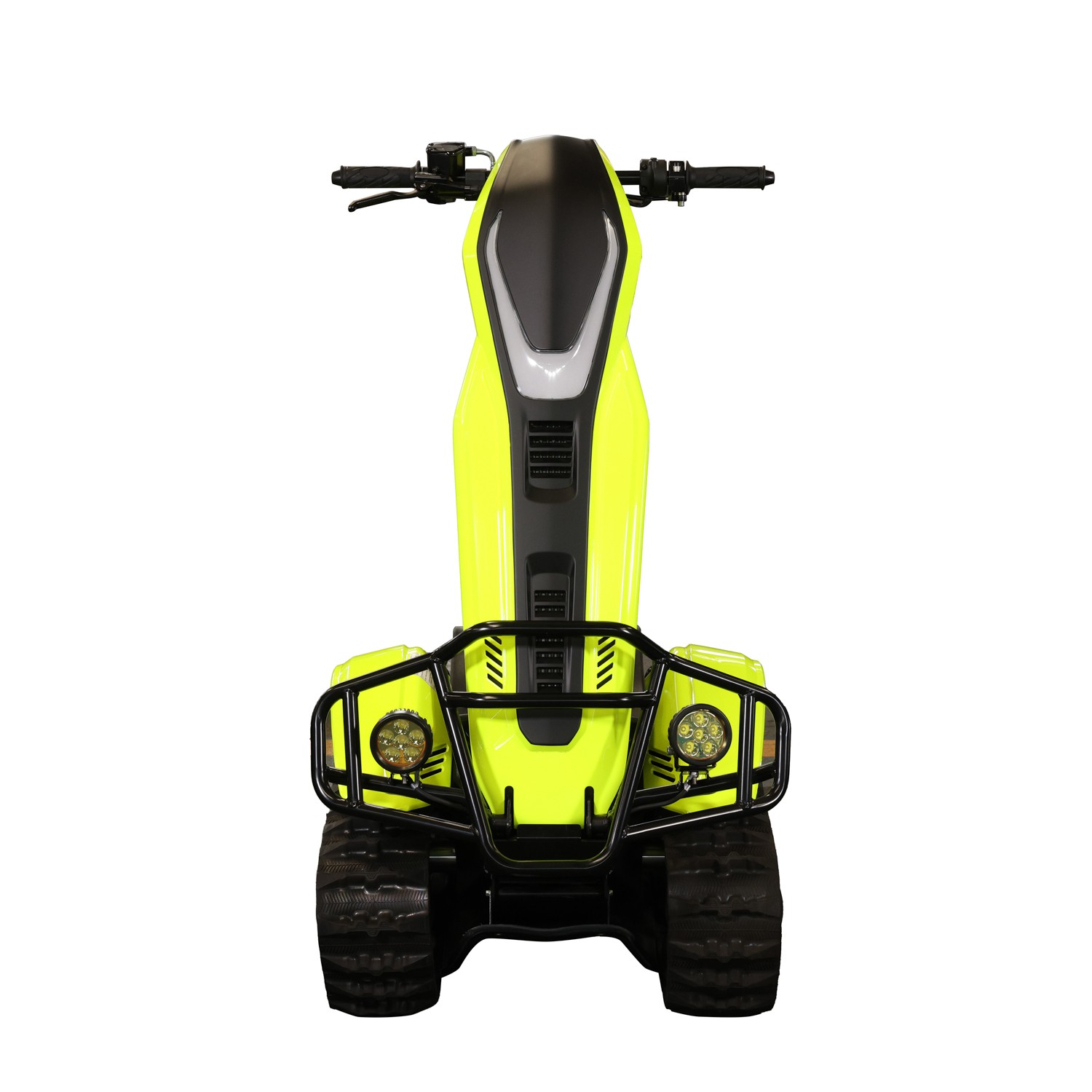

ELECTRIC TRACKED ALL TERRAIN VEHICLE
(STANDING VERSION) |
| MODEL | ET6 |
DIMENSION(L*W*H)

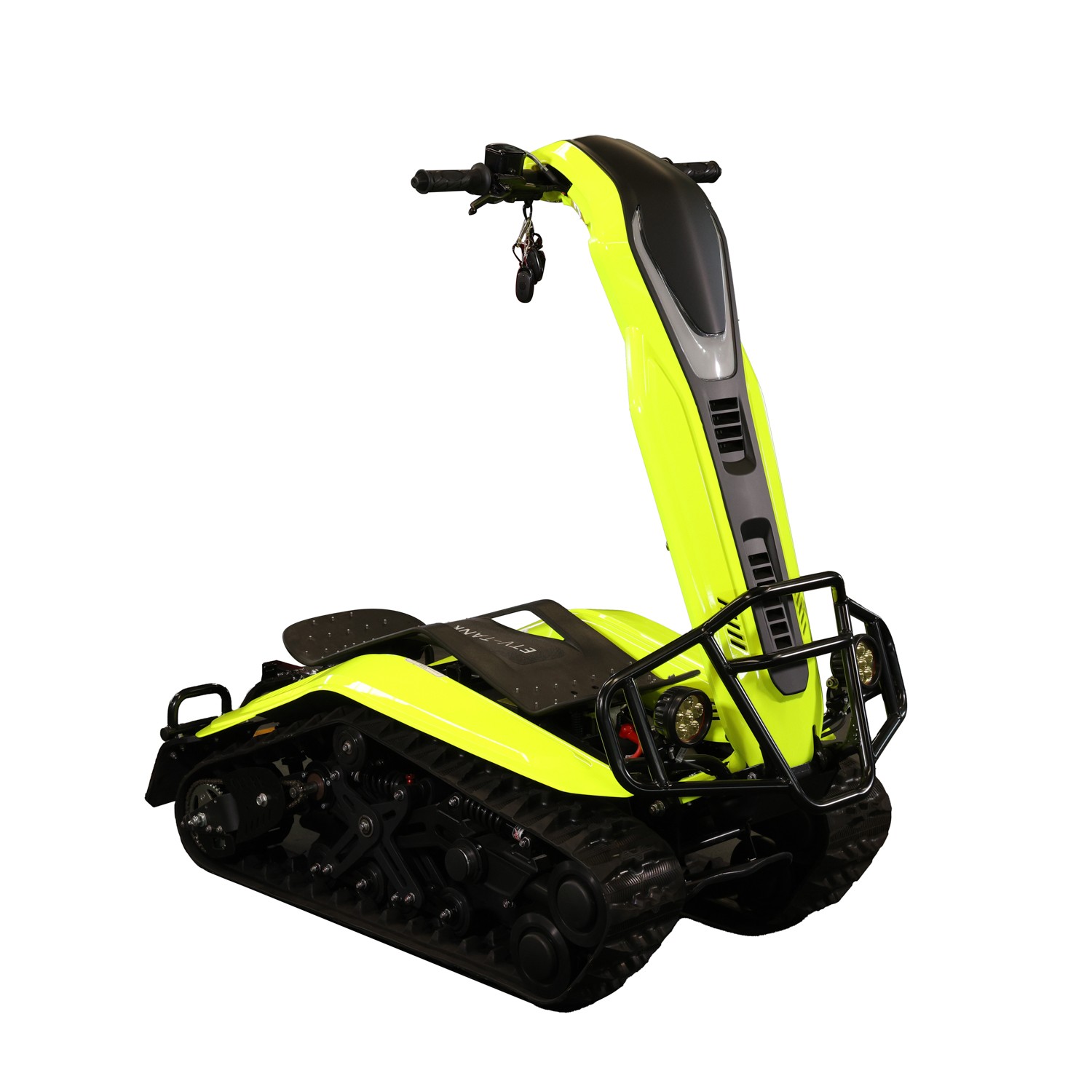

handlebar stand upright | 1265*700*1370mm |
DIMENSION(L*W*H)

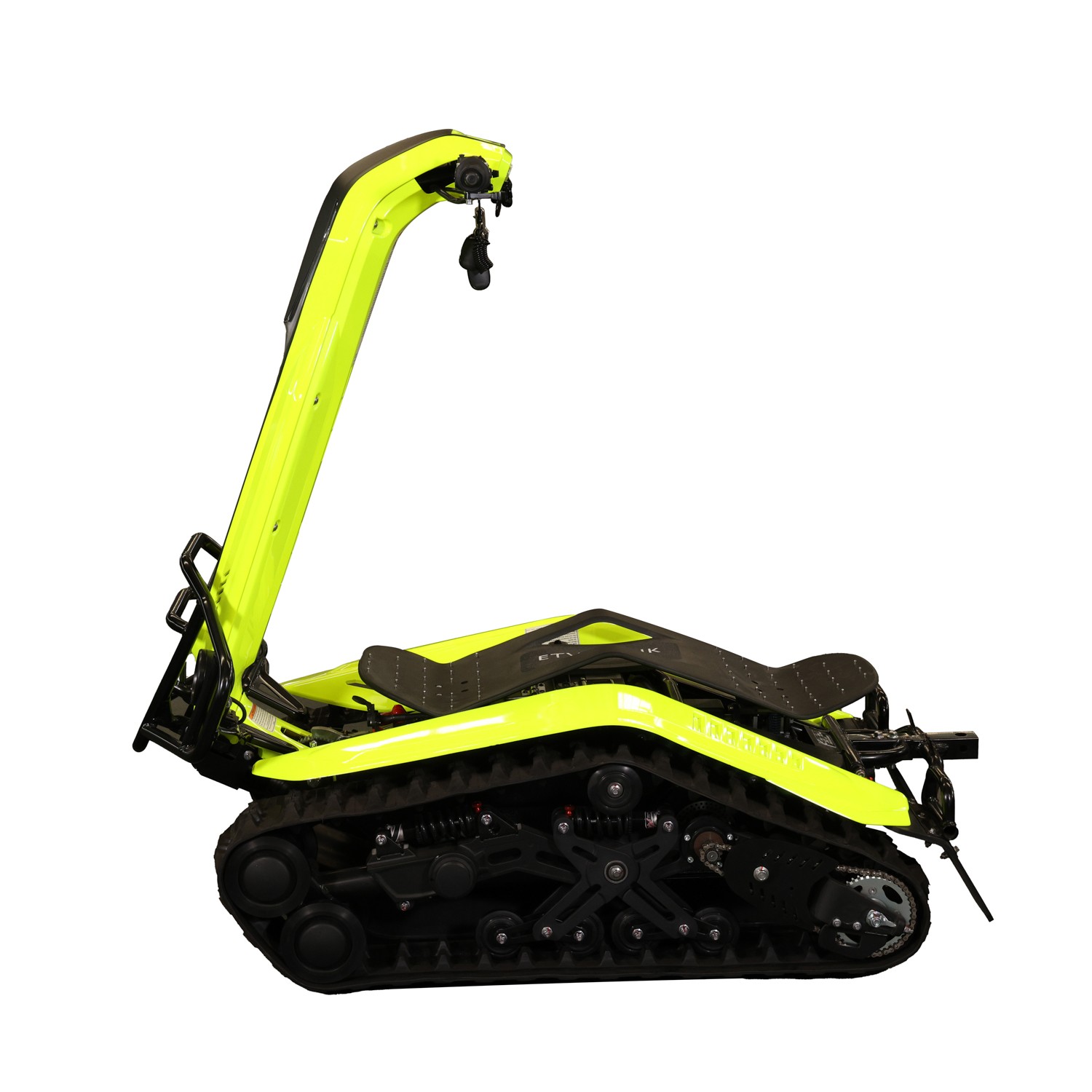

handlebar lie down | 1265*700*730mm |
| NET WEIGHT | 160KG |
| MAX LOADING | ≤200KG |
| DRAG WEIGHT | 300KG |
| MOTOR | PERMANENT MAGNET SYNCHRONOUS MOTOR |
| RATED POWER | 2000W*2 |
| MAX POWER | 4200W*2 |
| MAX TORQUE | 49N.M*2 |
| BATTERY | TERNARY POLYMER LITHIUM BATTERY |
| SPECIFICATION OF BATTERY | 72V45AH |
| CHARGER | 84V15A |
| CHARGING TIME | ≤3HOURS |
| CHARGING AMBIENT TEMPERATURE | 0℃ TO 50℃ |
| TRACK | DOUBLE RUBBER TRACK |
| SUSPENSION SYSTEM | ALUMINUM CASTING
CHRISTIE SUSPENSION |
| SHOCK ABSORBER | HYDRAULIC DAMPING *6 |
| MAX SPEED (FORWARD) | 22KM/H（6.1M/S） |
| MAX SPEED (BACK OFF) | 22KM/H（6.1M/S） |
| TURNING RADIUS | 0M |
| CLIMBING ABILITY (FORWARD ) | SLOPE ≥ 100% (ANGLE ≥ 45 °) |
| CLIMBING CAPACITY (LATERAL) | SLOPE ≥ 60% (ANGLE ≥ 31 °) |
| RANGE | ≥ 30KM (NORMAL TEMPERATURE @ AVERAGE 15KM / H) |
| DISCHARGE AMBIENT TEMPERATURE | -15 ℃ TO 60 ℃ |
| REMOTE CONTROL DISTANCE | WITH OBSTACLES: 300M
WITHOUT OBSTACLE: 600M |
| FR LIGHTS | 10W*4 |
| APPLICABLE ENVIRONMENT | SNOW / SAND / MUD / MOUNTAIN / DEPRESSION / ROAD |
Characteristics:
l Suitable for all terrain
l Fast
l Strong climbing ability
l Flexible
l Turn in place
l Left and right independent hydraulic braking system
l LED headlights
l LED daytime running lights
l Original bumper
l Original rear fender
l Assembled with the trailer ball, which can tow more than 300kg cargo sledge or wheeled trailer
l Connect your mobile phone with Bluetooth, then you can view the vehicle data (such as vehicle speed, mileage, driving time, current, remaining power, etc.) through the mobile phone app
